PROJECT: RITZ CARLTON HOTEL AND RESIDENCES

7 Mile Beach, Grand Cayman, BWI

MECHANICAL CONTRACTOR

McGilvary (Cayman), Ltd.

Ritz Carlton Hotel: 7 Mile Beach, Grand Cayman, BWI

Project Manager: Jim Geissinger

TAB Supervisor: V. Mike Stanimirovic, PE/TAB Supervisor

Hotel, Resort, and Residence Facilities

CONSISTS OF 4 VARIOUS BUILDINGS, INCLUDING A CONVENTION HALL AND A CENTRAL CHILLED WATER PLANT. The plant has 1,200 tons of cooling capacity with primary and secondary chilled water loops. The secondary loop has a variable flow. BUILDINGS ARE AIR-CONDITIONED BY AIR HANDLERS, VAV BOXES AND FAN COIL UNITS. HVAC IS CONTROLLED BY THE DDC-BUILDING MANAGEMENT SYSTEM (BMS).

Project Completed: February 2006

Project: Four Seasons Resort, Emerald Bay

Great Exuma, Bahamas

MECHANICAL CONTRACTOR

CAREY-FMI/FF. McGILVRAY, INC.

8690 NW 58th St., Miami, FL 33166

Project Manager: Bill Fallin

DESIGN CONSULTANT

THOMPSON ENGINEERING

3475 Lenox Rd. NE, Atlanta, GA 30326

TAB SUPERVISORS

Daniel Stanimirovic and Zaran CVETKOVIC

Hotel/Resort Facilities

CONSISTS OF 23 VARIOUS BUILDINGS, INCLUDING A CONVENTION HALL AND A CENTRAL CHILLED WATER PLANT. The plant has 1,300 tons of cooling capacity with primary and secondary chilled water loops. The secondary loop has a variable flow.

BUILDINGS ARE AIR-CONDITIONED BY AIR HANDLERS, VAV BOXES AND FAN COIL UNITS. HVAC IS CONTROLLED BY THE DDC-BUILDING MANAGEMENT SYSTEM (BMS).

Project Completed: 03/26/2004

PROJECT: MANDARIN ORIENTAL, 5-STAR HOTEL

 500 BRICKELL KEY DR., MIAMI, FL.

MECHANICAL CONTRACTOR

HILL YORK CORP.

2125 South Andrews Ave., FORT LAUDERDALE, FL. 33316

TEL: 954-525-2971; FAX: 954-525-2973

Project Manager: Mike HattWater-to-Water

DESIGN CONSULTANT: CASERTINI ASSOC., INC.

200 S. Orange Ave., Suite-1450, ORLANDO, FL.

TAB SUPERVISOR

DANIEL STANIMIROVIC

HOTEL FACILITIES

Large Miami Downtown Hotel with Convention Hall, Restaurants, and Other Facilities. The whole building is cooled with water-cooled chillers (capacity of 3,400 tons); common areas are conditioned with 30 air handlers; guests’ rooms are conditioned with fan coil units. BUILDING IS PROTECTED WITH SMOKE CONTROL/EVACUATION SYSTEM.

Project completed: February 2001

PROJECT: HAMPTON INN HOTEL

250 ANDREWS AVE., FORT LAUDERDALE, FL.

MECHANICAL CONTRACTOR

Air Service, Inc.

1964 WEST 9th St., Riviera Beach (WPB), FL. 33405

TEL: 561-842-9778; FAX: 561-881-7145

Project Manager: Kim Garbarino

DESIGN CONSULTANT

Steven Feller, PE, Inc.

500 NE 3rd Ave., Fort Lauderdale, FL 33301

TAB SUPERVISOR

ZORAN CVETKOVIC

HOTEL FACILITIES

This is an eleven-story building. COMMON AREAS ARE CONDITIONED WITH TWO "DX" SPLIT UNITS AND ONE "ROOF TOP" "DX" UNIT. GUESTS’ ROOMS ARE CONDITIONED WITH PACKAGE "DX" UNITS (PITAC). BUILDING IS ALSO PROTECTED WITH SMOKE CONTROL SYSTEM.

PROJECT WAS COMPLETED ON: January 1st, 2002

PROJECT

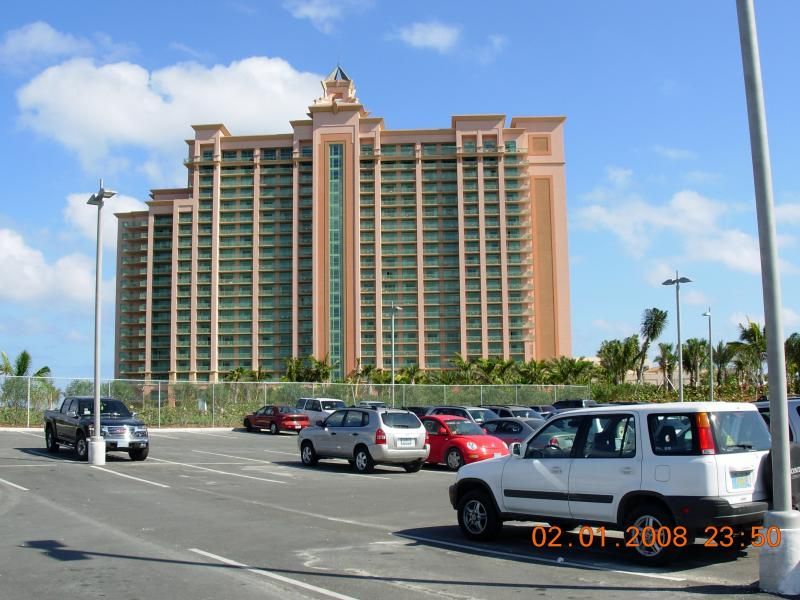

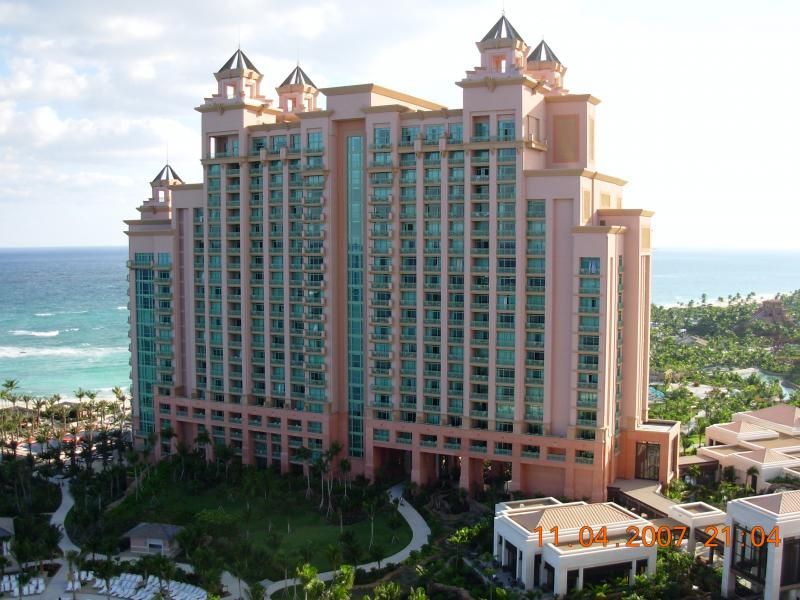

Atlantis Phase II

Paradise Island, Nassau, NP, Bahamas

MECHANICAL CONTRACTOR

CIVSA (CALEFACCION Y VENTILACION, S.A. de C.V.)

PARADISE BEACH RD., PARADISE ISLAND, NASSAU, NP, BAHAMAS

Tel: 242-363-5170/71

Prolong Calle 18 No. 246

COL. SAN PEDRO DE LOS PINOS

01180, Mexico, D.F.

CONSULTING ENGINEERS

BLUM CONSULTING ENGINEERS, INC.

8144 Walnut Hill Lane, Suite 200

Dallas, Texas 75231-4316

TAB Supervisors: V. Mike Stanimirovic and Daniel Stanimirovic

Hotel, Resort, and Casino

This project encompasses 1.5 million square feet of occupied space.

The chilled water plant consists of the following:

-FOUR McQUEY CENTRIFUGAL CHILLERS (1060 TONS/EA) AND ONE OF 500 TONS; TOTAL CAPACITY OF 4,740 TONS

-CHILLERS ARE COOLED BY WELL WATER THRU THREE WATER-TO-WATER PLATE HEAT

EXCHANGERS, 2280 TONS/EA, AND THREE WELL WATER PUMPS

Five condenser water pumps with a total design flow of 14,220 GPM

Five primary chilled water pumps with a total design flow of 11,376 GPM

Four secondary chilled water pumps (variable speed) with a total design flow of 12,080 GPM

HVAC SYSTEMS CONSIST OF 62 AIR HANDLING UNITS, 1500 FAN COIL UNITS, AND NUMEROUS VENTILATION, LIFE SAFETY, AND KITCHEN FANS.

The project was completed in November 1998.

PROJECT: PEMBROKE PINES ACADEMIC VILLAGE & LIBRARY

PEMBROKE PINES, FL.

MECHANICAL CONTRACTOR

THE POOLE & KENT CO., 1781 NW North River Dr., Miami, FL. 33125

TEL. or FAX: 305-325-1930 or 305-324-0522

Project Manager: Charles K. Neese

Design/Build Consultant

THE HASKEL CO., 111 Riverside Ave., Jacksonville, FL

TAB SUPERVISORS

V. Mike Stanimirovic and Daniel Stanimirovic

EDUCATION FACILITIES

This campus consists of seven buildings, as follows:

Bldg. "A" is the administration building. Buildings "B," "C," "D," and "S" are classrooms; building "G" is general purpose, with a gym, kitchen, and dining facilities. Building "M" is the library.

The whole campus is cooled by chilled water supplied by the chilled water plant. The chilled water plant has two Trane centrifugal chillers, weighing 435 tons each and 870 tons total. Heat is rejected through two Baltimore Aircoil Cooling Towers (408 cool tower tons each). Primary chilled water is pumped with two centrifugal pumps at 740 GPM each. Secondary chilled water is pumped by two centrifugal pumps with variable flow rates as per demand (equipped with VFDs). Air Handling Units (AHUs): There are 31 AHUs, some fan coil units (FCUs), and numerous ventilation fans. Some AHU systems are constant (CV), and some are variable air volume flow (VAV). VAV systems are equipped with variable frequency drivers (VFDs).

HVAC-Building Automation System: Trane DDC Tracer System All VAV terminals were set and calibrated through E-Ware software.

The project was completed on October 27, 2000.

PROJECT:

PEMBROKE PINESCENTRALCAMPUSMIDDLE SCHOOL K-5 & PRE-K

MECHANICAL CONTRACTOR

THE POOLE & KENT CO., 1781 NW North River Dr., Miami, FL. 33125

TEL. or FAX: 305-325-1930 or 305-324-0522

Project Manager: Charles K. Neese

INFORMATION PENDING!

PROJECT: Hammacks Middle School

9889 Hammocks Blvd., Miami, FL

OWNER

Miami-Dade County Board of Education

Project Manager: Charles Gannaway/Tel. No.: 305-256-5413

Design/Build: HVAC Contractor

COLTEC ENGINEERING, INC.

12169 SW 131st Ave., Miami, Fl. 33186

Tab Supervisor: V. Mike Stanimirovic, PE

The project was completed on July 17, 2003.

Project: Bob Graham Education Center (State School ‘C’)

15901 N.W. 79th Ave., MIAMI LAKES, FL.

OWNER

Miami-Dade County Board of Education

Project Manager: Roberto Rodriguez, Tel. no. 305-995-4827, Fax no. 305-995-1383

DESIGN CONSULTANT

SDM CONSULTING ENGINEERS, INC.

4515 Ponce DeLeon Blvd., Coral Gables, Fl. 33146

HVAC CONTRACTOR

A & M Mechanical, Inc.

7495 NW 7th St., Bay-1, Miami, Fl. 33146

TAB SUPERVISOR

Daniel Stanimirovic

PRO-AIR CO. IS EMPLOYED BY THE MIAMI-DADE BOARD OF EDUCATION ON PUBLIC SCHOOLS PROJECTS AS TAB VENDOR #3443512.

EDUCATIONAL FACILITY

A SINGLE TWO-STORY STRUCTURE IS AIR-CONDITIONED BY TWO WATER-COOLED CHILLERS (396 tons total). Six "AHU-VAV" systems and four "AHU-CAV" systems Heat is rejected through two cooling towers. THERE IS KITCHEN VENTILATION SYSTEM AND NUMEROUS VENTILATING FANS. HVAC SYSTEMS CONTROL: DDC BY SOUTH FLORIDA CONTROLS CO.; ‘ORCA’ VIEW SOFTWARE (Native BACnet Control Solution); and Delta Control Hardware.

The project was completed on September 15, 2003.



Project: Thomas Jefferson Middle School Addition

 INFORMATION PENDING!

OWNER

Miami-Dade County Board of Education

Project Manager: Luis Rodriguez, Tel. 305-995-4577

The project was completed in 2004.

 PROJECT: RICHMOND HEIGHTS MIDDLE SCHOOL – ADDITION

15015 S.W. 103rd Ave., Miami-Dade, Fl. 33176

OWNER

Miami-Dade County Board of Education

Project Manager: Jose Valez, Tel. No.: 305-995-4838

DESIGN CONSULTANT

L.J. AGUIRRE & ASSOCIATES, PA

2600 Douglas Rd., Coral Gables, Fl. 33134

HVAC CONTRACTOR

JORDA MECHANICAL CONTRACTORS

7591 NW 19th Street, Suite C, Miami, FL 33126

TAB SUPERVISOR

V. Mike Stanimirovic, PE; PRO-AIR IS A TAB VENDOR

EDUCATION FACILITY

One-story structures are air-conditioned by two "AHU-VAV" systems. Ventilation (OA) is pre-cooled by SF units.

Cooling is provided by two air-cooled chillers (139 tons total).

HVAC CONTROLS: BAS (Building Automation System)

Trane DDC Tracer System

The project was completed on 03/21/005.

Project: Coral Gables Senior High School Addition

OWNER

Miami-Dade Board of Education

1450 N.E. 2nd Ave., Miami, FL 33132

Project Manager: Michael Krtausch, Tel. no. 305-995-4881

DESIGN CONSULTANT

FRAGA ENGINEERING

3830 Shipping Ave., Miami, Fl. 33146

HVAC CONTRACTOR

COLTEC ENGINEERING, INC.

12169 SW 131st Ave., Miami, Fl. 33186

TAB SUPERVISOR

Daniel Stanimirovic, Pro-Air, is a TAB vendor to the board.

EDUCATIONAL FACILITY

The building is air-conditioned by four "AHU-CAV" and four "AHU-VAV" systems. Cooling is provided by two water-cooled chillers, weighing 236 tons in total. There is a primary chilled water loop with two pumps. Heat is rejected through two cooling towers. The condenser water loop has two pumps. There are numerous ventilation fans.

HVAC CONTROLS—BAS

DDC System.

The project was completed on March 25, 2005.

RESIDENTIAL PROJECTS

Custom homes with complex air-conditioning systems and controls

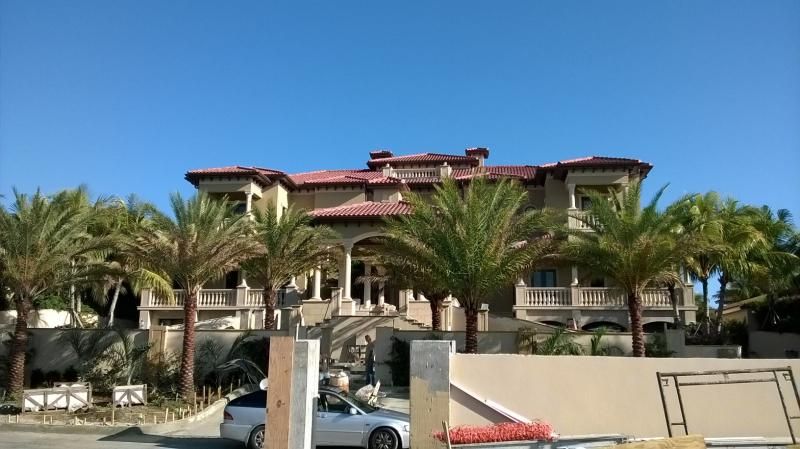

Siroky Residence, Old Fort, NP, Bahamas
